Linear Fiber Optic Bundles
Multimode Linear-to-Linear Fiber Optic Bundles for Spectroscopy, Laser, and Custom Optical Applications
Basic Information
Contact
For any technical questions or inquiries, please do not hesitate to contact us.
Sales Department
Tel.: +420 493 765 111
sales@sqs-fiber.cz

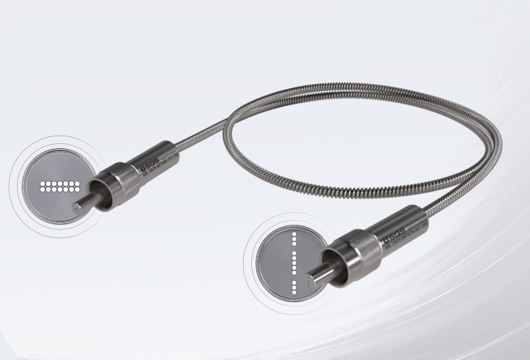

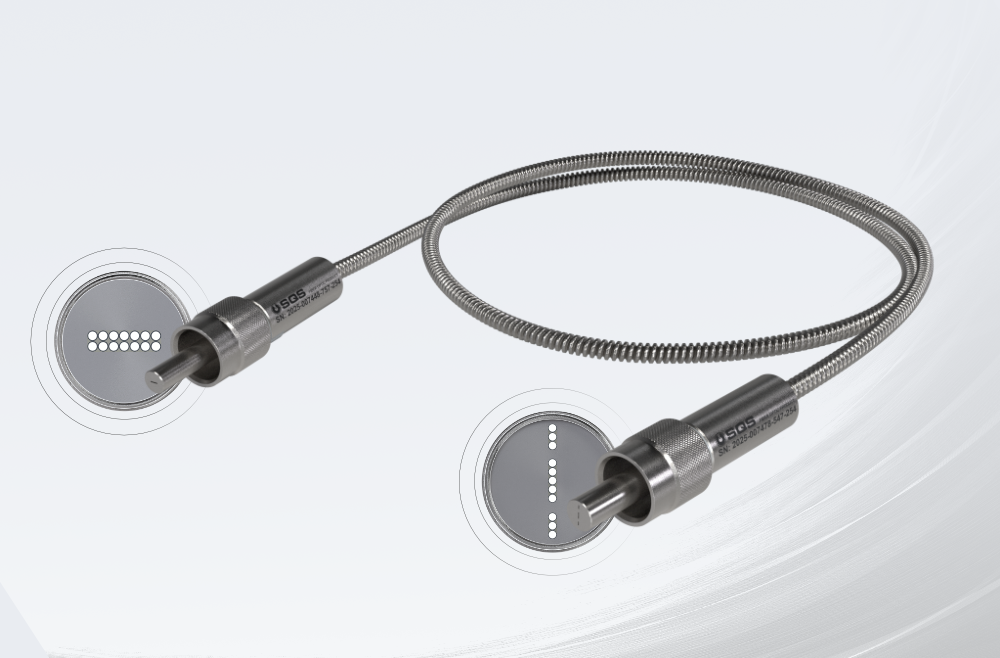

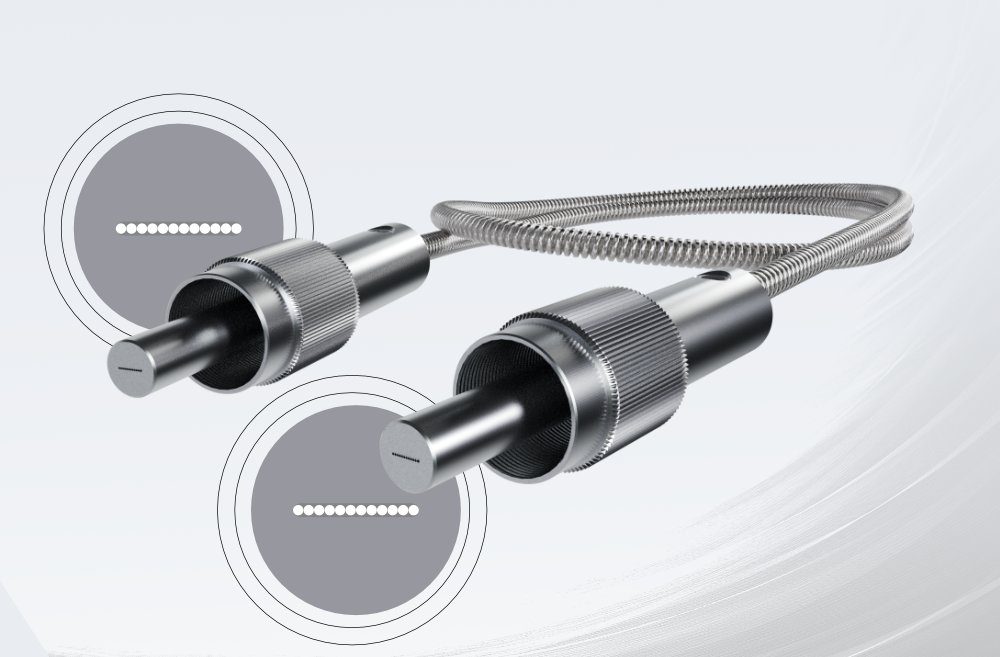

Linear-to-linear straight fiber bundles are ideal for applications requiring precise fiber mapping and high coupling efficiency into devices with entrance slits, such as spectrometers. We offer FC/PC, SMA905, MT or custom ferrules—metal or glass—manufactured directly at SQS, as well as glass fiber arrays (FAU). For FC connectors, customers can specify the orientation of the linear structure relative to the connector key.
Fibers are arranged in one or multiple rows within a slit: up to 900 µm for FC and 1.6 mm for SMA905. Core sizes range from 50 µm to 1000 µm, with guaranteed mapping and lengths per customer specification. Bundles can include multimode fibers (Low OH, High OH), solarization-resistant fibers for UV, and options for vacuum or extreme temperatures. Mechanical protection is provided by stainless steel tubing or PVC jackets, and end faces can be ARC-coated to minimize back reflections.
Highlights
- FC/PC, SMA905, MT, V-groove Fiber Array and custom interfaces
- Single-row and multi-row configurations
- Core diameters: 50-1000 µm
- Slit ferrule positioning accuracy: ±5 µm
- MT ferrule and FAU positioning accuracy: ±0.5 µm
- Custom fiber pitch and geometry
- ARC-coated end faces available
- UV, vacuum, and high-temperature compatible solutions
Applications
- Spectroscopy and Imaging – Optimized for spectrometers with entrance slits
- Laser Line Delivery – Efficient coupling for line illumination
- UV and High-Temperature Environments
- Custom Optical Assemblies
Technical Specifications
Precision of Linear Fiber Arrangements
SQS offers several technologies for manufacturing linear fiber arrangements with positioning accuracy optimized for the target application.
FC, SMA905 and Custom Slit Ferrules
Fibers are bonded into a precision-machined slit, providing a robust and cost-effective solution for spectroscopy, sensing, and industrial optical systems.
- Typical fiber positioning accuracy: ±5 µm
- Maximum slit width in FC ferrules: 0.9 mm
- Maximum slit width in SMA 905 ferrules: 1.6 mm
- Larger slit widths available using custom connector designs
Glass V-Groove Fiber Arrays
Glass V-groove fiber arrays provide the highest positioning accuracy and long-term stability for demanding photonics and sensing applications.
- Typical fiber positioning accuracy: ±0.5 µm
- Minimum fiber pitch (fiber core center-to-center spacing): 127 µm for fibers with 125 µm cladding diameter
- Suitable for high-precision photonics and sensing applications
- Custom V-groove fiber array designs available
MT Ferrule Based Arrays
Commercial MT ferrule technology offers a standardized solution combining high positioning accuracy with excellent scalability.
- Standard fiber pitch: 250 µm (for fibers with 125 µm cladding diameter)
- Typical fiber positioning accuracy: ±0.5 µm
- Up to 16 fibers in a single row
- Multi-row configurations available for higher fiber counts
- Standardized solution combining high precision
