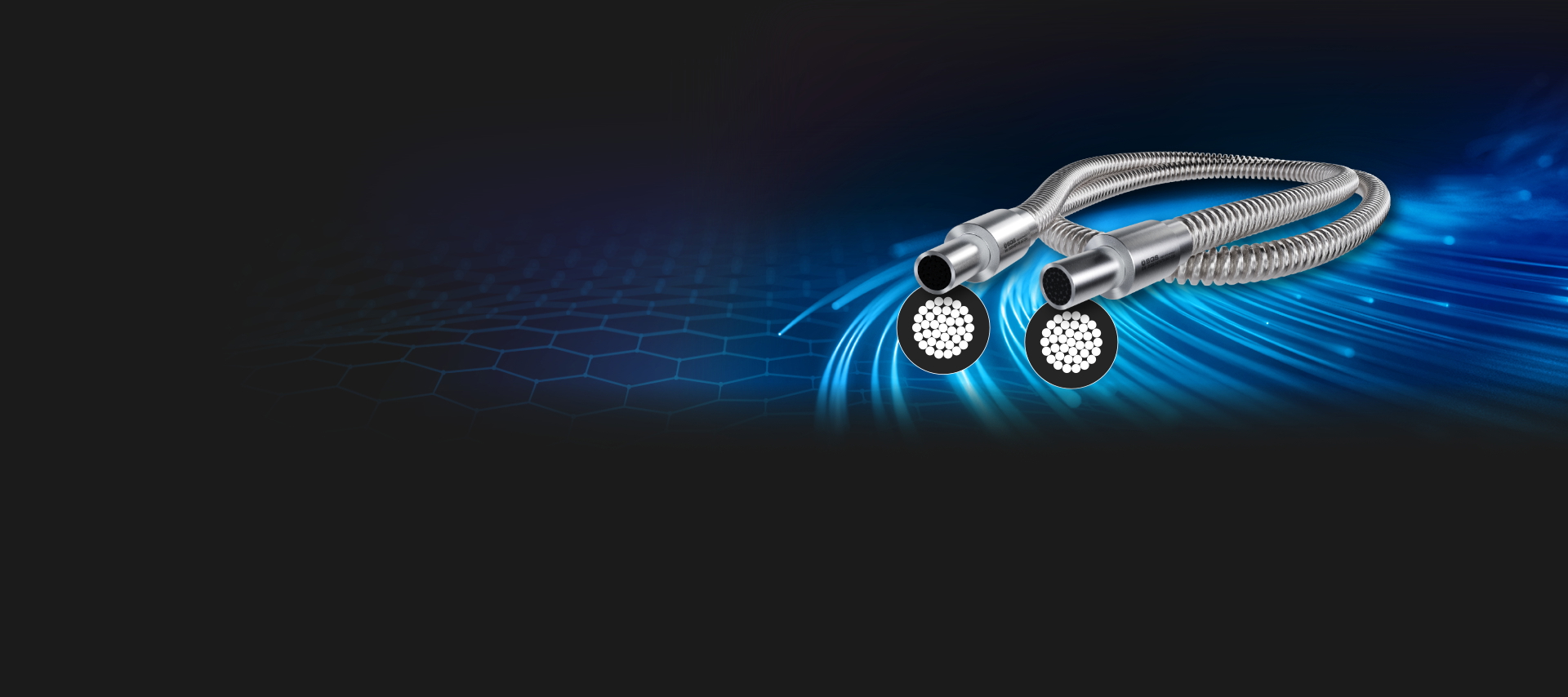

Round Fiber Optic Bundles
Epoxy-Bonded Round-to-Round Fiber Bundles for Spectroscopy, Imaging and Optical Instrumentation
Basic Information
Contact
For any technical questions or inquiries, please do not hesitate to contact us.
Sales Department
Tel.: +420 493 765 111
sales@sqs-fiber.cz
Custom round-to-round fiber optic bundles with epoxy-bonded fibers for light collection, transmission and coupling.
Fibers are bonded into a common ferrule, with or without polyimide primary coating. Custom fiber count, core diameter, fiber type, ferrule and connector configurations are available.
The bonded construction does not provide defined fiber-to-fiber mapping between the two ends. For applications requiring precise fiber positioning, SQS offers 2D fiber matrices with positioning accuracy down to 1 µm.
For 1 × N and N × 1 signal splitting or combining, fiber randomization is available.
These bundles are not intended for high-power or high-energy laser transmission. For high-power applications, see our thermally fused Laser Beam Delivery Cables.
Highlights
- Round-to-Round Configuration
- Epoxy-Bonded Fiber Bundle
- 7, 19, 37 or Custom Fiber Count
- 50–1000 µm Core Diameter
- FC, SMA905 or Custom Connectors
- Polyimide or Uncoated Fibers
- ARC-coated end faces for reduced back reflections
Applications
- Spectroscopy and Imaging
- Fluorescence and Raman spectroscopy
- 1 × N and N × 1 signal splitting and combining
Technical Specifications
Round Fiber Bundle Specifications
| Parameter | Specification |
|---|---|
| Configuration | Round-to-round, straight or custom |
| Construction | Epoxy-bonded, with uncoated or polyimide-coated fibers |
| Fiber count | 7, 19, 37 or custom |
| Fiber core diameter | 50–1000 µm |
| Numerical aperture (NA) | 0.12, 0.22, 0.28, 0.37, 0.48 |
| Wavelength range | UV / VIS / NIR |
| Fiber type | Multimode / custom |
| Fiber arrangement | Standard / randomized |
| Fiber mapping | Not defined between bundle ends |
| Ferrule | Stainless steel / glass / custom |
| Connector | FC / SMA905 / custom |
| Bundle diameter in connector | < 1.9 mm (FC) / < 2.6 mm (SMA905) |
| Protective tubing | Stainless steel / PVC / custom |
| End-face coating | ARC coating available |
| Environmental options | Solarization-resistant fibers / vacuum / high temperature |
