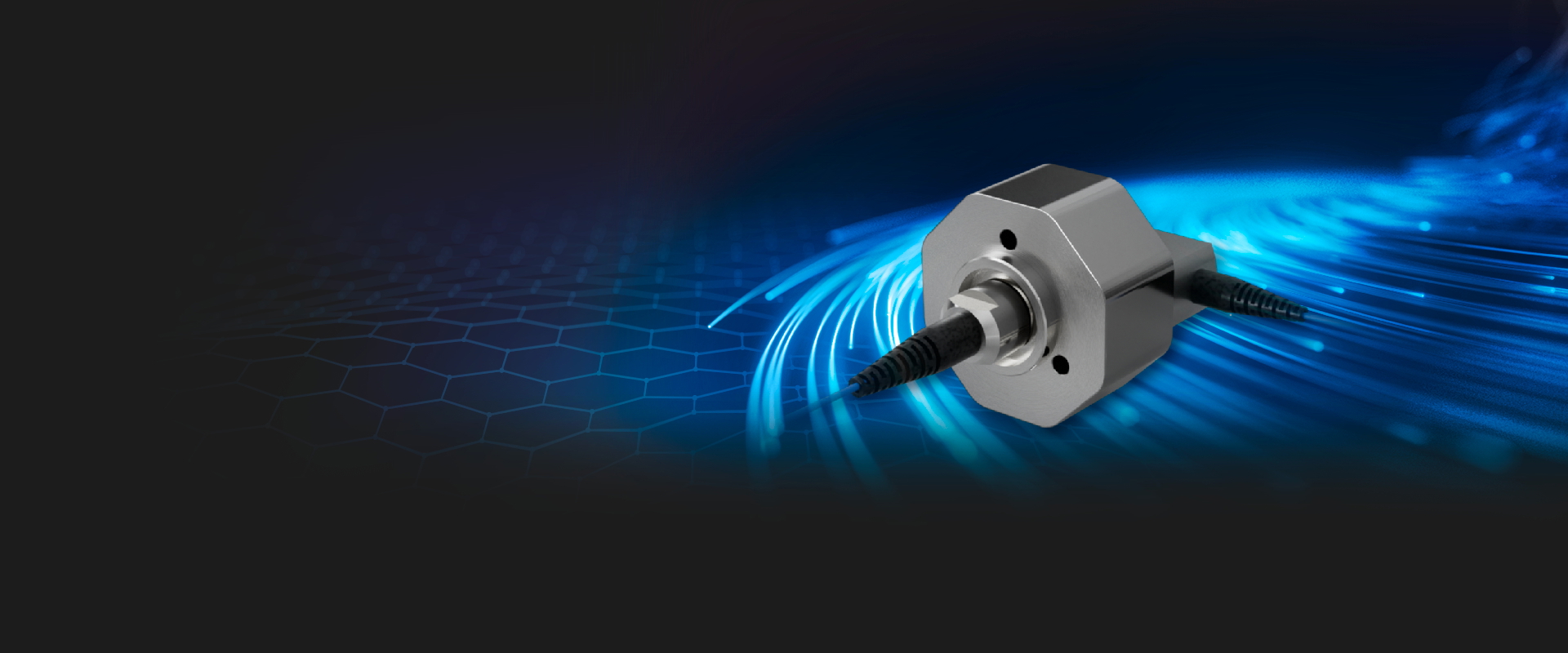

90° Optical Rotary Joint
Single-channel fiber optic rotary joint (FORJ) for signal transmission during rotation
Basic Information
Contact
For any technical questions or inquiries, please do not hesitate to contact us.
Sales Department
Tel.: +420 493 765 111
sales@sqs-fiber.cz
High-performance solution for optical signal transmission while rotating with minimal attenuation and excellent stability. Compact and durable stainless steel design ensures reliable operation even in harsh conditions where continuous rotation is required. Ideal for a wide range of industrial applications.
Advantages
- Single-channel design
- Single-mode version
- Low and stable attenuation during rotation
- Custom design
Application
- Wind turbines
- Robotics
- Aviation
- Defense industry
Technical Specifications
| Fiber type [nm] | SM (1310 / 1550) |
| Max. insertion loss [dB] | Type. < 0.8 (max 1.5 including connectors) |
| Max. insertion loss variation [dB] | 0.5 |
| Return loss [dB] | > 50 |
| Max. optical power [mW] | 500 |
| Rotation speed [rpm] | Up to 5000 |
| Temperature range [°C] | -55 / +85 |
| Weight [g] | < 50 |
| Connector interface | LC, SC, E2000, FC, A801, others |
| Fiber protection | Tubing 900 um, 2 mm, 3 mm, others |
