UHNA Fiber Arrays

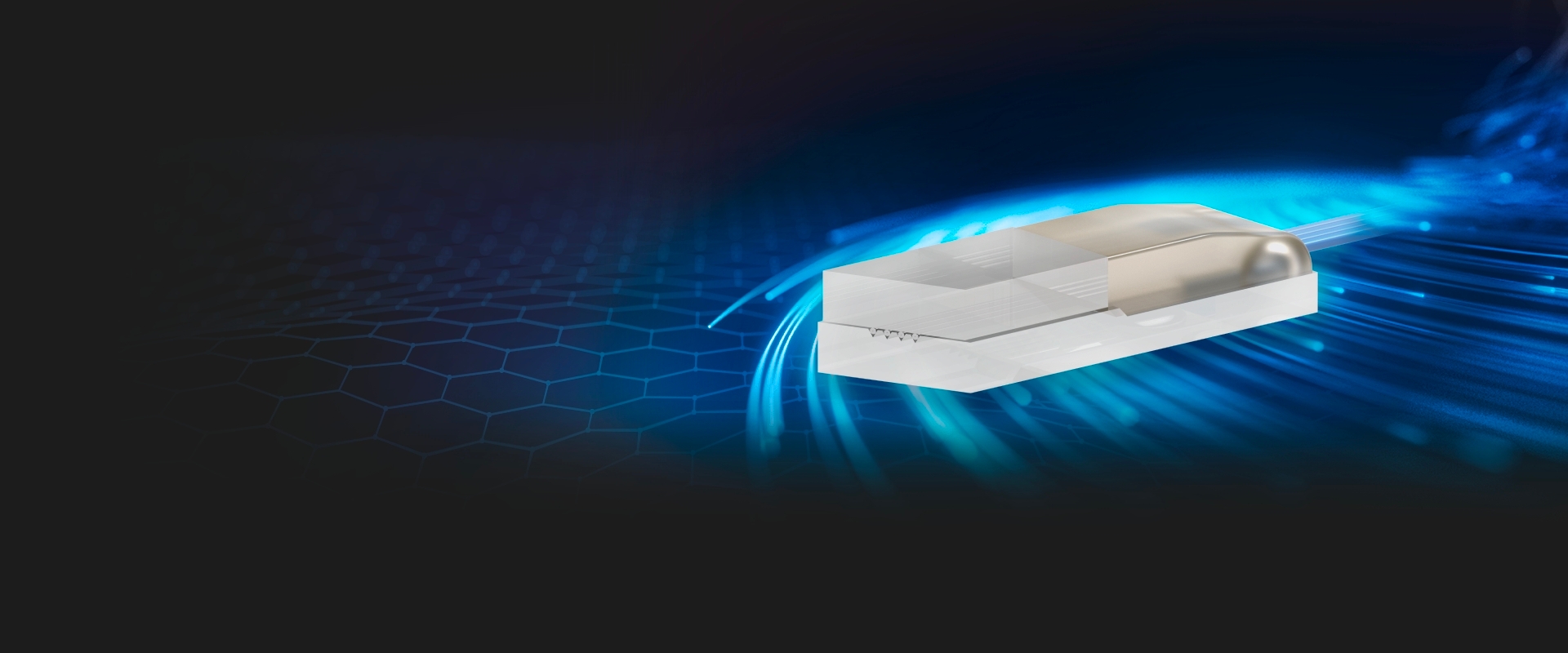

High-precision custom fiber array units (FAUs) terminated with UHNA (Ultra-High Numerical Aperture) fibers optimize light transfer between SM/PM fibers and smaller waveguides in PICs.

Customers can define fiber dimensions and pitch, number of channels, end-face polishing angle, type of SM/PM and UHNA fiber, as well as the required connector type. FAUs can be supplied with various connectors such as MMC, MMC jr., MTP, LC, and others.

Available UHNA fibers

• UHNA1: 1100–1600 nm, NA=0.28, MFD=4.0 µm @1310 nm (4.8 µm @1550 nm)
• UHNA3: 960–1600 nm, NA=0.35, MFD=3.3 µm @1310 nm (4.1 µm @1550 nm)
• UHNA4: 1100–1600 nm, NA=0.35, MFD=3.3 µm @1310 nm (4.0 µm @1550 nm)
• UHNA7: 1500–2000 nm, NA=0.41, MFD=3.2 µm @1550 nm

Advantages

• Low-loss connection between SM/PM fibers and PICs
• Customizable fiber dimensions, channel count and pitch, and end-face angles
• Compatible with various connector types and tubing
• Supports different UHNA fibers for optimal MFD matching

Applications

• Photonic Integrated Circuits (PICs)
• Optoelectronic modules and sensors
• High-density telecom and data networks
